TR960 series Integrated 850/1300/1310/1490/1550/1625/1650nm SM and MM OTDR, with Ethernet

Descriptions

TR960 series optical time domain reflectometer adopts 7 inch capacitance touch screen, which integrates 9 modules, with excellent intelligent hardware and software design, the accuracy of short fiber test and automatic test is higher. It is equipped with rich Ethernet (PING/PPOE etc.), support APP control.

TR960 series is used to test the optical fiber length, loss and connection quality, and used in the engineering construction, link maintenance test. They are mainly used in urban trunk, bone trunk network and metropolitan network.

Features

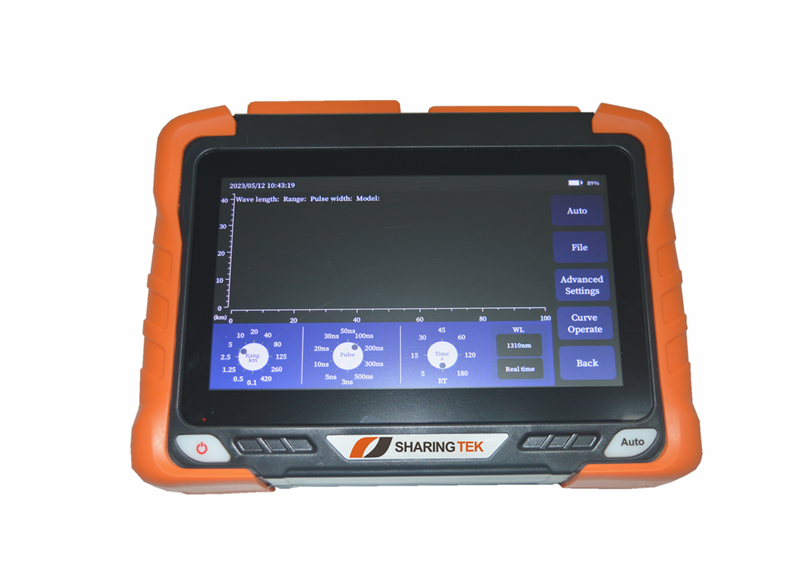

7 inch color TFTLCD display, touch operation mode

0.5 event dead zone

Support SM/MM/SM+MM test

Online detection, effective APD active protection

PON network online test

Support fast charging protocol and power bank

Ethernet test

Mobile APP wireless application

Integrate OTDR/iOLM/OPM/LS/VFL/Optical Loss Test/Ethernet Test/Remote Test/File Management

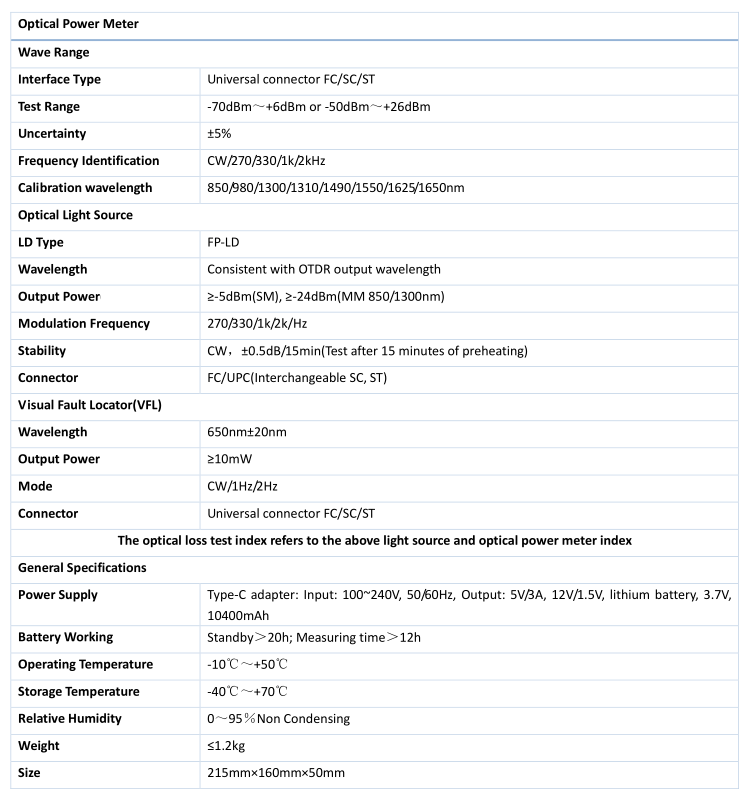

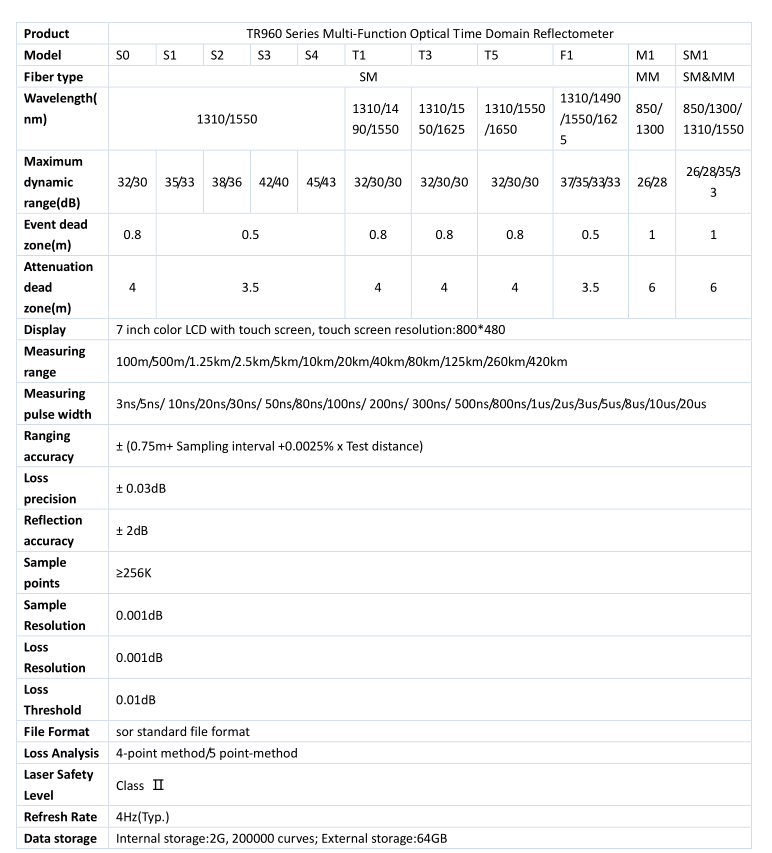

Technical specifications and ordering information
