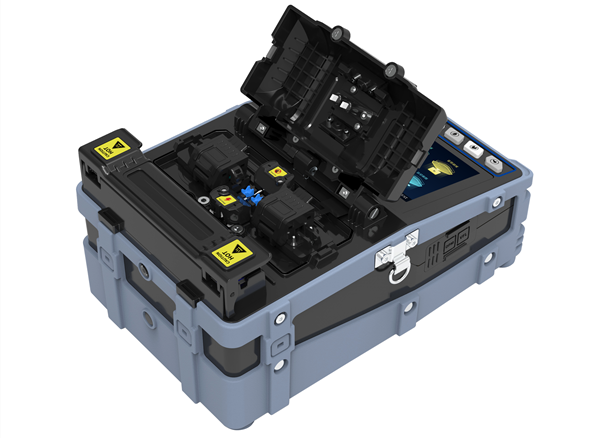

Model:：SH-FS195H
Overview
The fusion splicer with excellent quality and rich functions, quick and portable, with good properties of mini size ,four motor drive, light weight, fast speed.
Features
3s quick start, HD capacitive touch screen
Focused image magnification, 320 times
High-capacity battery life, 5200mAh
Fast fusion splicing

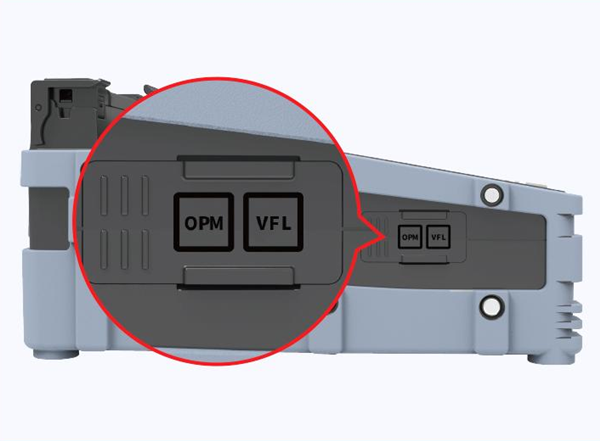

Built-in OPM and VFL

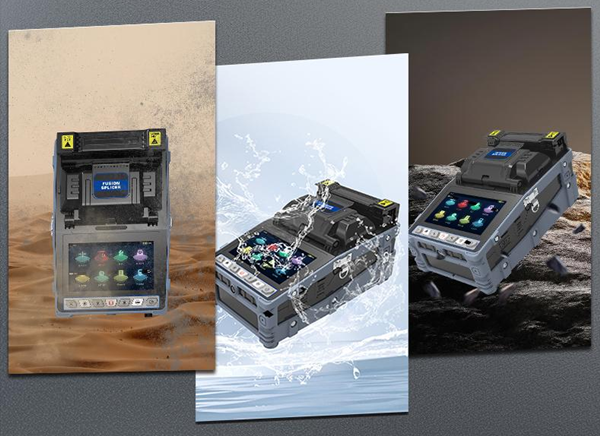

Dustproof, waterproof and shockproof
Dual theme mode, switch between daytime and nighttime modes
Dual LED lighting at night
Ultra-low noise
Specifications
|
Item |
SH-FS195H Fusion Splicer |
|
Applicable Fiber Type |
G651, G652, G653, G655,G657 |
|
Applicable Fiber Count |
Single |
|
Motors |
Cladding Alignment (Quad Motors) |
|
Extension Modules |
OPM(-50~+26dBm)/VFL(10mW) (Standard configuration) |
|
Multifunctional Holders |
Five-in-one multifunctional clamps |
|
Illumination |
Dual LED V-groove lighting |
|
Splice Mode |
200 welding program presets |
|
Heating Mode |
80 preset heating programs |
|
Automatic Heating |
Support |
|
Average splice loss |
0.02dB(SM),0.01dB(MM),0.03dB(DS),0.04dB(NZDS) |
|
Return Loss |
More than 60dB |
|
Splicing Time |
≤ 7 sec |
|
Heating Time |
≤ 18 sec |
|
Splice loss evaluation |
It has |
|
Shrinking Tubes |
20-60mm |
|
Tensile test |
1.96~2.1N |
|
Screen |
4.3-inch high-definition capacitive touch screen, dual button/ touch control |
|
Interface |
GUI graphical operation interface, equipped with graphical maintenance navigation function |
|
Image magnification |
320 times |
|
Language Menu |
Language Multiple display languages available for users to choose |
|
Power Supply |
AC 100~240V,DC 15~19V |
|
Battery |
5200mAh,typical operating times 340 times |
|
Maximum storage |
Can store about 1,600 images and 10,000 sets of data |
|
Data interface |
Port Type-C,USB2.0 (can be used to export data) |
|
Operating environment |
Temperature: -20℃~+50℃ humidity: 0~95% (no condensation); wind speed >15m/s |
|
Storage Conditions |
Relative humidity 0~95%,-40~70℃ |
|
Altitude |
Can work at altitudes from 0 meters to 5000 meters above sea level |
|
Weight |
1550g (including battery) |
|
Boot Time |
3 seconds |
|
Size |
208*141*104mm |
Packing List
|
Main Unit |
1pcs |
|
Fiber Cleaver |
1pcs |
|
Wire Cable Fiber Stripper |
1pcs |
|
CFS-3 Miller Stripper |
1pcs |
|
Spare Electrodes |
1 pair |
|
Cooler |
1pcs |
|
Tweezers |
1pcs |
|
Alcohol Bottle |
1pcs |
|
Fiber Holders |
Universal Fiber Holders |
|
Carrying Suitcase |
1pcs |
|
AC Adaptor |
1pcs |
|
Blower (dustproof) |
1pcs |
|
Test Report |
1pcs |
|
Portable Straps |
1pcs |
