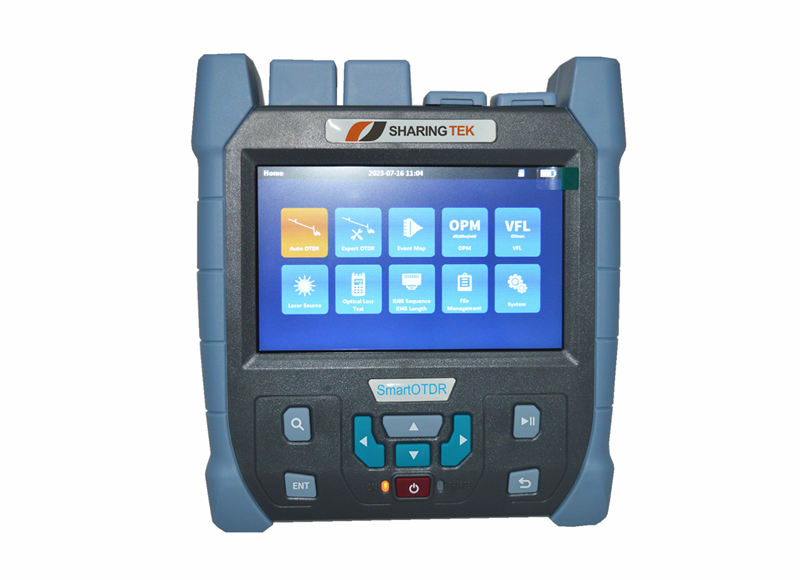

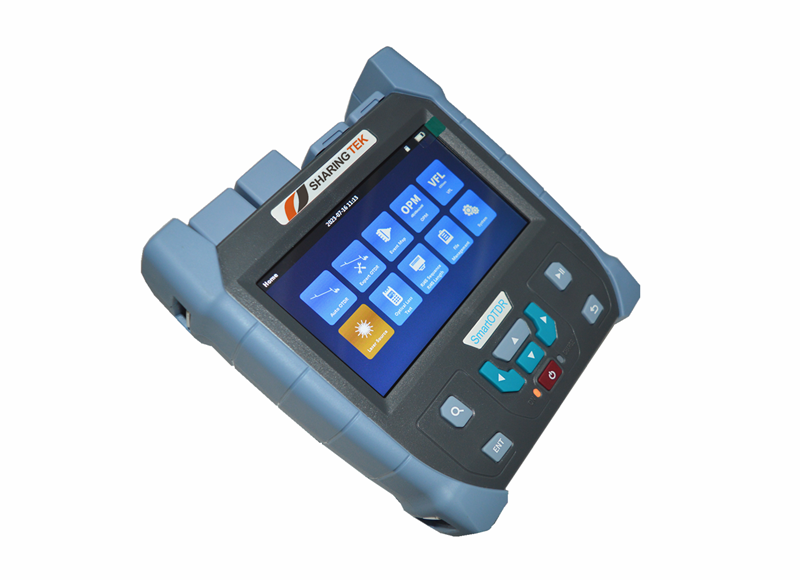

Model:：TR1600M
Characteristics
Small size and beautiful, easy to carry
5-inch high-definition full touch screen, support multi-touch, interactive friendly
Rich functions, one machine in hand, all installation and maintenance
Working wavelength: 850 and 1300nm
Battery working time is more than 8 hours, safety guarantee
1.5m event dead zone, 6m attenuation dead zone
High-performance processor for smooth handling
Intelligent link analysis to visually display analysis events
Automatic OTDR, expert OTDR, event map, optical power meter, red light, stable light source, loss test
Technical Specifications
|
Optical Time Domain Reflectometer |
||||
|
Model |
TR1600M |
|||
|
Fiber type |
MM |
|||
|
Wavelength |
850/1300nm |
|||
|
Maximum dynamic range |
22/24dB |
|||
|
Event dead zone |
1.5m |
|||
|
Attenuation dead zone |
6m |
|||
|
Test range |
500m/1km/2km/4km/8km/16km/32km/64km/100km |
|||
|
Test pulse width |
5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/ 1μs/2μs/3μs/5μs/8μs/10μs/20μs |
|||
|
Ranging accuracy |
± (0.75m + sampling interval + 0.005%× test distance) |
|||
|
Linearity |
±0.05dB/dB |
|||
|
Maximum number of sampling points |
≥16000 |
|||
|
Maximum sampling resolution |
≤0.03m |
|||
|
Loss resolution |
0.01dB |
|||
|
Loss threshold |
0.20dB |
|||
|
Distance resolution |
0.01m |
|||
|
refractive index |
1.00000~2.00000 |
|||
|
Reflection accuracy |
±3dB |
|||
|
File format |
SOR standard file format |
|||
|
Loss measurement mode |
4-point method /5-point method |
|||
|
Laser safety rating |
Level Class II |
|||
|

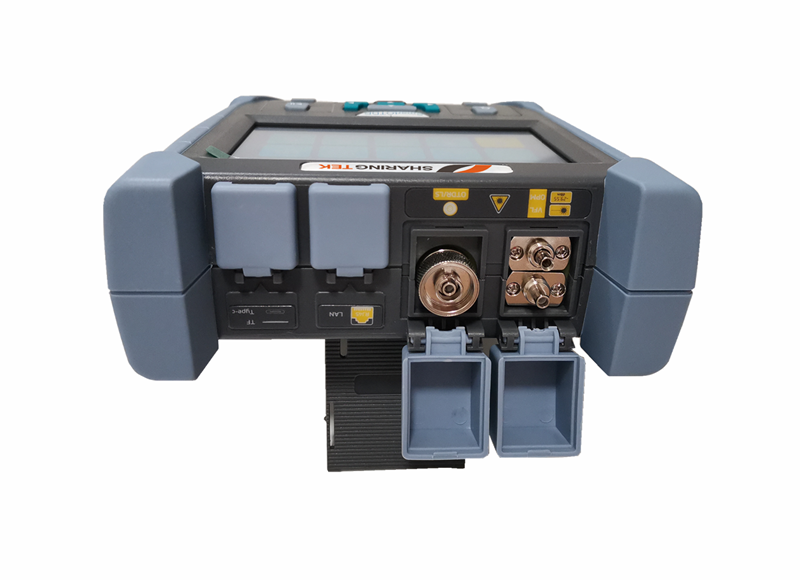

Optical connectors |
FC/SC is interchangeable, universal interface |
|||
|
Optical Power Meter |
||||
|
Wavelength range |
800nm~1700nm |
|||
|
Calibrate the wavelength |
850/980/1300/1310/1490/1550/1625/1650nm |
|||
|
Measuring range |
-70~+6dBm (optional) /-50~+26dBm (standard) |
|||
|
Identification frequency |
CW/270Hz/330Hz/1kHz/2kHz |
|||
|
Resolution |
0.01dB |
|||
|
Uncertainty |
±5% |
|||
|
Optical connectors |
Universal connector FC/SC/ST |
|||
|
Optical Light Source |
||||
|
Output wavelength |
Consistent with OTDR output wavelength |
|||
|
Laser type |
FP - LD |
|||
|
Output power |
≥-5dBm |
|||
|
Stability |
CW, ±0.5dB/15min (tested after 15min warm-up) |
|||
|
Optical connectors |
SC/PC |
|||
|
Output mode |
CW/270Hz/330Hz/1kHz/2kHz |
|||
|
Visual Fault Locator |
||||
|
Operating wavelength |
650nm±20nm |
|||
|
Output power |
≥10mW |
|||
|
Working mode |
CW/1Hz/2Hz |
|||
|
Optical connectors |
Universal connector |
|||
|
Generic Metrics |
||||
|
Display |
Full touch 5-inch, 800×480 color LCD |
|||
|
Power supply mode |
AC/DC adapter: input: 100V~240V, 50/60Hz, 0.6A Output: 5V, 2A, lithium polymer battery: 3.7V, 5000mAh |
|||
|
working hours |
Standby > 12h, continuous test >8h |
|||
|
Data storage |
Interior: 8G, ≥20000 strip |
|||
|
Data interface |
Type-C USB |
|||
|
Operating temperature |
-10℃～+50℃ |
|||
|
Storage temperature |
-40℃～+70℃ |
|||
|
Relative humidity |
0～95％No condensation |
|||
|
Total weight |
≤700g (with battery) |
|||
|
Size |
170mm×154mm×58mm |
|||
★ Standard configuration: Automatic OTDR, expert OTDR, event map, optical power meter, red light, stable light source, loss test.
Configuration List
|
NO. |
NAME |
QUANTITY |
Remarks |
|
1 |
Host |
1 |
Battery included |
|
2 |
Adapter |
1 |
|
|
3 |
Data Line |
1 |
|
|
4 |
CD-ROM(Analysis software/User’s Manual) |
1 |
|
|
5 |
User’s Manual |
1 |
|
|
6 |
FC/UPC |
1 |
|
|
7 |
SC/UPC |
1 |
|
|
8 |
Qualification Certificate/ Service Guarantee Card |
1 |
|
|
9 |
Calibration Certificate |
1 |
|
|
10 |
Clean Cotton Slices |
10 |
|
|
11 |
Instrument Backpack |
1 |
|
