Model:：
Descriptions

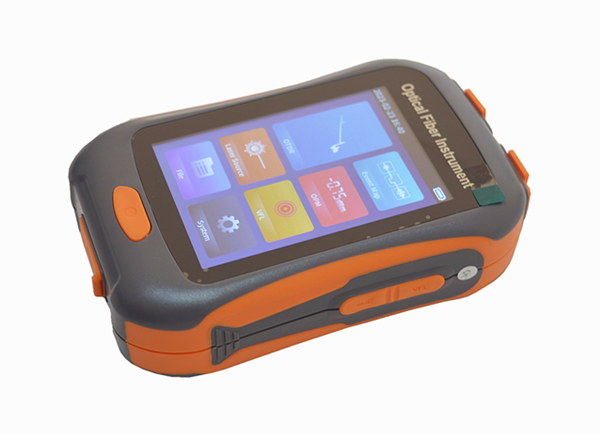

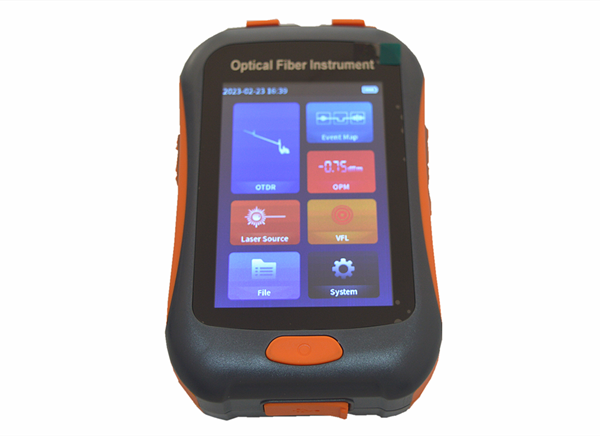

The TR1500S mini OTDR is compact and easy to carry. It adopts a 3.5 inches high-definition touch screen, supports multi-touch and smooth operation, integrates OTDR, event map, optical power meter, light source, visual fault locator and flashlight in one unit, to meet various test needs in different occasions. The OTDR function adopts 1550nm wavelength and is built in high-efficiency wavelength isolator. It can perform optical live test on 1490 and 1577nm optical links, which supports up to about ±10dB optical live test. Its maximum measurement range is 80km.
The TR1500S is used to measure optical fiber’s length, loss, connection quality and other parameters. It can easily test the breaking point, bend and loss point of the optical fiber links. It is suitable for maintenance personnel to have optical line maintenance and emergency repair testing.
Characteristics
l 3.5-inch multi-touch capacitive screen
l Intelligent multi-function, 6-in-one functional module: OTDR, event map, optical power meter, light source, visual fault locator and flashlight
l Automatic OTDR, no complicated settings, one-key test
l On-live optical link test
l Event blind zone 2.5m, attenuation blind zone 10m, measuring range up to 80KM
l Support automatic saving, SOR file format
Technical Specifications
|
Model |
TR1500S |
|
Wavelength |
1550nm±20nm |
|
Type |
G.652 SM |
|
Live Test |
Yes |
|
Dynamic Range |
20dB |
|
Event Blind Zone |
2.5m |
|
ATT Blind Zone |
10m |
|
Test Range |
100m, 300m, 500m, 1.25km, 2.5km, 5km, 10km, 20km, 10km, 80km |
|
Pulse Width |
5ns~20us |
|
Ranging Accuracy |
±(1m+Sampling interval+0.005％×Test distance) |
|
Linearity |
±0.05dB/dB |
|
Sample Points |
≥20000 |
|
Sample Resolution |
≤0.03m |
|
Loss Resolution |
0.01dB |
|
Loss Threshold |
0.2dB |
|
Distance Resolution |
0.01m |
|
Refractive Index |
1.00000~2.00000 |
|
Reflection Accuracy |
±3dB |
|
Laser Safety Level |
Class Ⅱ |
|
File Format |
SOR Standard file format |
|
Loss Measurement Mode |
4-point/5-point |
|
Connector |
SC/UPC(SC/APC optional) |
|
Optical Power Meter |
|
|
Wave Range |
850/980/1300/1310/1490/1550/1625/1650nm |
|
Interface Type |
Universal connector FC/SC/ST |
|
Test Range |
-70dBm～+6dBm(optional) -50dBm～+26dBm(standard) |
|
Uncertainty |
±5% |
|
Frequency Identification |
CW/270/330/1k/2kHz |
|
Optical Light Source |
|
|
LD Type |
FP-LD |
|
Wavelength |
Consistent with OTDR output wavelength |
|
Output Power |
≥-5dBm |
|
Output Mode |
CW/270Hz/330Hz/1kHz/2kHz |
|
Connector |
SC/UPC |
|
Visual Fault Locator(VFL) |
|
|
Wavelength |
650nm±20nm |
|
Output Power |
≥10mW |
|
Mode |
CW/1Hz/2Hz |
|
Connector |
Universal connector FC/SC/ST |
|
General Specifications |
|
|
Display |
Touch Screen, 3.5 Inches 320*480 color LCD |
|
Data Interface |
Type-C |
|
Power Supply |
Polymer Li-Battery: 3.7V, 2200mAh, Adapter: 5V DC, 2A |
|
Battery Working |
Standby＞6h; Measuring time＞4h |
|
Operating Temperature |
-10℃～+50℃ |
|
Storage Temperature |
-40℃～+70℃ |
|
Relative Humidity |
0～95％Non Condensing |
|
Weight |
≤200g(including battery) |
|
Size |
126mm×80mm×37mm |
|
The standard configuration: OTDR, Event Map, OPM, VFL, LS, Flashlight |
|
Configuration List
|
NO. |
NAME |
QUANTITY |
Remarks |
|
1 |
Host |
1 |
Battery included |
|
2 |
Adapter |
1 |
|
|
3 |
Data Line |
1 |
|
|
4 |
CD-ROM(Analysis software/User’s Manual) |
1 |
|
|
5 |
User’s Manual |
1 |
|
|
6 |
SC/UPC |
1 |
|
|
7 |
Qualification Certificate/ Service Guarantee Card |
1 |
|
|
8 |
Calibration Certificate |
1 |
|
|
9 |
Cleaning Pads |
10 |
|
|
10 |
Special Instrument Package |
1 |
|
