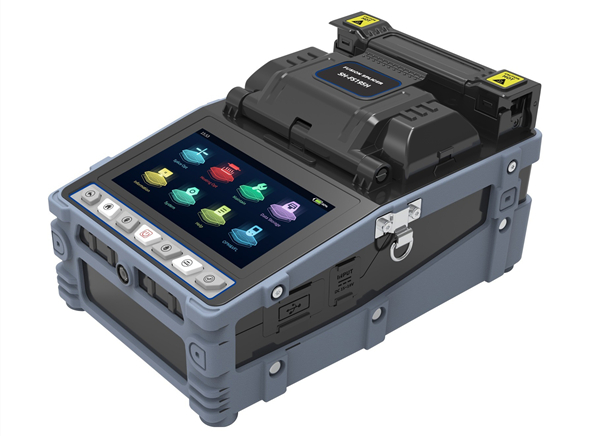

Model:：SH-FS170+
♦Based on the principle of PAS(Lateral Projection System), adopt advanced image detection algorithm .
♦ Double core align structure, higher success rate of fusion and lower loss;
♦Adopt 4.3 inches 16:9 TFT colorized LCD screen;
♦Typical fusion time: 9sec; fast time: 7sec
♦Typical heating time: automatic v-shaped heat shrinkable 9 seconds, cover and automatic heating;
♦Reliability design, strengthen shockproof, dust proof and other functions;
♦Low power consumption design makes it possible to work long time with many functions operate at the same time;
♦Multi-functional, small-sized, portable, can greatly improve working efficiency;
♦Can detect the air pressure, temperature and humidity and other environmental factors and automatically calibrate arc.
♦Removable plug the battery, convenient and quick charge;
♦Concerning, the straps can be used for aerial work.
Specifications
|
Item |
SH-FS170+ Fusion Splicer |
|
Applicable Optical Fiber Types |
SM (G.652/G.657) MM (G.651) DS (G.653) NZDS (G.655) EDFBIF/UBIF |
|
Applicable Optical Fiber Core Number |
Single core |
|
Applicable Optical Fiber Diameter |
Cladding Diameter: 90-150μmCoating diameter:125～1000μm |
|
Fusion Splice Model |
Prestore:40 groups User define: 80 groups |
|
Average Fusion Splice Loss |
0.02dB(SM) 0.01dB(MM) 0.04dB(DS) 0.04dB(NZDS) |
|
Return Loss |
Better than 60dB |
|
Fusion splice Duration Time |
9Sec(Typical Mode) 7Sec(Fast Mode) |
|
Loss Estimation of Fusion Splice |
Exist |
|
Tension Test |
≥2N(Optional big rally fusion splicer 8N) |
|
Display |
4.3 inches colorized LCD |
|
Optical Fiber Magnification Times |
X/Y:180 times X or Y:350 times |
|
Power Supply |
11.1V Lithium battery 13.5V/5A power adapter |
|
Battery |
Typically work 260 cycles ( Splicing / Heating) |
|
Storage |
10000 Records |
|
Image storage |
10 pieces image |
|
Data Interface |
USB2.0 |
|
Operating Environment |
Elevation:0~5000m Relative humidity:0~95% Temperature:-20°C~55°C Maximum wind speed:15m/s |
|
Storage Environment |
Relative humidity:0~95% Temperature:-40°C~80°C (Except Battery) Temperature:-10°C~40°C (Battery) |
|
Weight |
1.53kg(without battery) 1.93kg(with battery) |
|
Corrosion Resistance |
Equipment components Parts and materials meet composite anti-corrosion requirements Anti-fluid pollution |
|
Size |
166L×142W×139H(mm) |
|
Working aloft |
Optional side hook strap you can hang the machine directly on the operator’s neck by the strap |
|
Alignment |
Core alignment Cladding alignment Fine Alignment |
|
Applicable Optical Fiber Cable Diameter |
2mm 3mm 4mm 6mm |
|
Applicable Sleeve Length |
60mm 45mm 40mm(FP-03) |
|
Heating Time |
Fusion-Protection Sleeves 9s Fast heating (customizable) |
|
Heating Temperature |
Below 300°C (customizable) |
|
Automatic Heating |
Automatic fiber identification & Heating when close cover |
Packing List
|
Main Unit |
1pc |
|

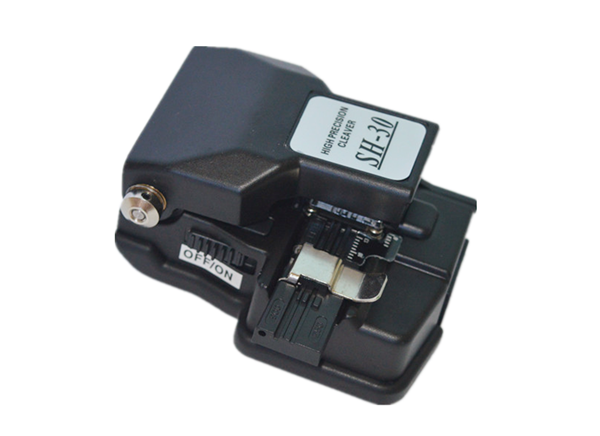

Fiber Cleaver |
1pc |
|
Insulated Fiber Stripper |
1pc |
|
Miller Stripper |
1pc |
|
Spare Electrodes |
1 pair |
|
Cooler |
1pc |
|
Tweezers |
1pc |
|
Alcohol Bottle |
1pc |
|
Fiber Holders |
Universal Fiber Holders (0.25mm 0.9mm2.0mm 3.0mm 3.1mm) |
|

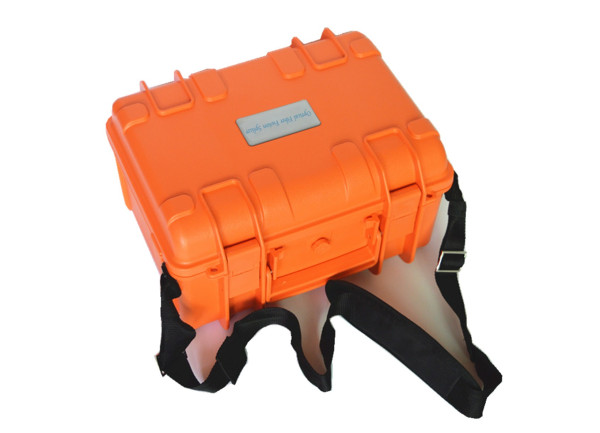

Carrying Suitcase |
1pc |
|
AC Adaptor |
1pc |
|
Blower(dustproof) |
1pc |
|
Specifications |
1pc |
Splicing Procedures
